Steam boilers are an essential element of diverse industrial methods, power generation systems, and heating applications. These versatile structures convert water into steam through applying warmness electricity, which is then used for mechanical work, electricity generation, or heating. Over time, specific varieties of steam boilers have been developed, each designed to healthy precise wishes, gas types, and operational conditions.

In this weblog post, we are able to discover the one-of-a-kind kinds of steam boilers, how they work, and their common packages throughout industries.

What Is a Steam Boiler?

A steam boiler is a closed vessel wherein water is heated underneath pressure till it will become steam. This steam is then directed via piping systems to electricity generators, engines, or heating systems. The efficiency and layout of the boiler depend upon the type of gasoline used, the utility it serves, and the quantity of steam required.

There are  most important categories of steam boilers:

• Fire Tube Boilers
• Water Tube Boilers

Let’s destroy these down and discover their types.

1. Fire Tube Boilers

In fireplace tube boilers, hot gases from combustion pass thru tubes which are surrounded by way of water. The warmness from the gases transfers through the tube partitions, heating the water and developing steam.

Common Types of Fire Tube Boilers:

1. a) Cornish Boiler

• Design: Single large flue tube containing the furnace.
• Operation: Horizontal, internally fired, and herbal draft.
• Application: Historically utilized in textile and chemical industries.

1. B) Lancashire Boiler

• Design: Two parallel flue tubes jogging thru a horizontal cylindrical shell.
• Operation: Capable of manufacturing huge quantities of steam at low stress.
• Application: Sugar mills, paper industries.

1. C) Locomotive Boiler

• Design: Horizontal, multi-tubular, hearth-tube design.
• Features: Portable and compact.
• Application: Historically utilized in trains and steam engines.

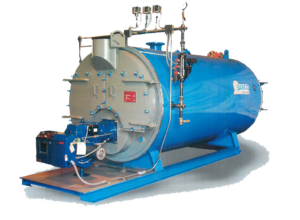

1. D) Scotch Marine Boiler

• Design: Horizontal fire-tube with a cylindrical shell.
• Capacity: Capable of operating at slight strain and capacity.
• Application: Marine ships, industrial flowers.

1. E) Cochran Boiler

• Design: Vertical, multi-tubular, and fireplace-tube.
• Features: Compact layout and clean to operate.
• Application: Small-scale industries and educational labs.

Advantages of Fire Tube Boilers:

• Simple layout and operation.
• Lower preliminary fee.
• Suitable for small to medium steam needs.

Disadvantages:

• Limited steam strain and potential.
• Slower steam-raising in comparison to water tube boilers.

2. Water Tube Boilers

In water tube boilers, water flows in the tubes and is heated with the aid of outside combustion gases. These boilers are appropriate for excessive-strain and high-temperature steam era.

Common Types of Water Tube Boilers:

1. a) Babcock and Wilcox Boiler

• Design: Horizontal drum with willing water tubes.
• Operation: Natural circulation with compelled draft fan.
• Application: Power plant life, massive production gadgets.

1. B) Stirling Boiler

• Design: Three drums linked with the aid of bent water tubes.
• Features: High warmness switch charge.
• Application: Electric era stations.

1. C) La Mont Boiler

• Design: Uses a pump to flow into water thru tubes.
• Operation: Forced circulation type.
• Application: High-stress packages, thermal power stations.

1. D) Benson Boiler

• Design: No drum, water is superheated to steam immediately.
• Features: Operates at critical strain (around 221 bar).
• Application: Modern electricity stations.

1. E) Loeffler Boiler

• Design: Superheated steam used to evaporate feed water.
• Advantages: Prevents scaling in boiler tubes.
• Application: High-pressure steam packages.

1. F) Velox Boiler

• Design: Combustion underneath high pressure with gas turbine help.
• Features: Compact and green.
• Application: Rapid steam generation in commercial settings.

Advantages of Water Tube Boilers:

• Higher pressure and capacity.
• Faster steam technology.
• Suitable for huge-scale and non-stop operations.

Disadvantages:

• More complicated design and operation.
• Higher initial funding.

3. Other Specialized Types of Boilers

Beyond the two primary classes, numerous specialised boiler types are designed for unique programs:

1. a) Electric Steam Boilers

• Operation: Uses electricity to generate warmness.
• Advantages: Clean, quiet, and compact.
• Application: Laboratories, food processing, hospitals.

1. B) Waste Heat Recovery Boilers

• Design: Utilizes waste heat from commercial techniques.
• Features: Energy-green, fee-saving.
• Application: Refineries, cement plants, gasoline mills.

1. C) Fluidized Bed Combustion Boilers (FBC)

• Design: Uses a mattress of hot fluidized strong debris for combustion.
• Advantages: Burns low-grade fuels efficaciously.
• Application: Biomass and coal-fired energy vegetation.

1. D) Package Boilers

• Design: Factory-assembled and compact.
• Features: Easy installation and relocation.
• Application: Small-scale industries and brief installations.

1. E) Mobile Boilers

• Design: Mounted on a trailer or truck.
• Features: Portable and prepared to set up.
• Application: Emergency steam technology, army, and far flung websites.

Applications of Steam Boilers Across Industries

Steam boilers serve a large spectrum of programs depending on the steam stress, exceptional, and quantity wanted. Here are some of the maximum outstanding sectors:

1. Power Generation

Steam turbines driven by way of excessive-pressure steam generate electricity in thermal power plants. Water tube boilers like Babcock & Wilcox, Benson, and La Mont are generally used for their capability to address excessive temperatures and pressures.

2. Petrochemical and Refining

Steam is used for distillation, cracking, and other refining approaches. Waste warmness restoration boilers and water tube boilers are broadly used in these energy-in-depth operations.

3. Food and Beverage Industry

Processes like pasteurization, sterilization, and cooking depend upon easy, dry steam. Electric steam boilers or small fireplace-tube boilers are best because of their compact size and ease of use.

4. Textile Industry

Boilers are essential for dyeing, drying, and finishing techniques. Fire tube boilers are regularly used for their simplicity and decrease price.

5. Pulp and Paper

Steam is used in digesters, evaporators, and dryers. High-potential water tube boilers are commonly hired.

6. Pharmaceuticals

Strict hygiene and temperature manipulate are required. Electric boilers are often used for his or her clean and specific operation.

7. Chemical Industry

Steam is needed for processing chemical substances, heating reactors, and extra. Both fire and water tube boilers are used relying on the precise application.

8. Hospitals and Healthcare Facilities

Steam is used for sterilization, heating, and laundry. Compact, quiet, and easy boilers like electric powered or packaged boilers are perfect right here.

Choosing the Right Steam Boiler

When selecting a boiler, several elements have to be taken into consideration:

Steam Demand: Quantity and stress of steam required.

• Fuel Availability: Natural gas, oil, coal, biomass, or energy.
• Efficiency Goals: High-performance systems lessen operational charges.
• Space and Budget: Initial funding and available area.

Application Specifics: Some approaches may additionally want dry steam, superheated steam, or clean steam.

Consulting with boiler manufacturers or engineers can assist tailor a machine that meets both performance and budgetary desires.

Trusted Industry Solutions by Supreme Boilers

When it comes to high-overall performance and reliable steam boiler solutions, Supreme Boilers stands proud as a relied-upon industry leader. With decades of know-how and engineering excellence, Supreme Boilers offers a wide range of current steam boilers tailored for industrial packages. Their product lineup consists of the sturdy FPS Series firetube boilers, the flexible FST Series steam boilers, and the high-performance ESP Series for specialised wishes. For hot water programs, the PLW Series affords reliable performance. Additionally, the SM4 Series and SM5 Series are engineered for maximum efficiency and sturdiness, making them best for diverse business operations. Whether you’re upgrading your system or constructing new, Supreme Boilers provides first-class innovation and performance you can anticipate.

Final Thoughts

Steam boilers are the heart of many businesses and industrial operations. Understanding the differing types, from fireplace tube and water tube boilers to specialized structures like electric-powered and waste heat recovery boilers, is critical in deciding on the right one in your needs.

Each boiler kind comes with its very own set of blessings and ideal use cases, and the right desire can substantially beautify efficiency, sustainability, and cost-effectiveness. Whether you are looking for high-capacity energy technology or small-scale business heating, there’s a steam boiler designed to get the task performed successfully.
